		"The Elk Grove" Craftsman Bungalow Plan ID: A102 The Basics: 1044 Square feet \| 2 Bedrooms \| 1.5 Bath \| 0 Garage stalls \|1 Levels Plan cost: Please contact me if you are interested in purchasing this plan. Project Description This is an economically designed home, both in space-efficiency and in construction cost. The framing and structure is simple, which allows one to invest in the visible qualities of the home: Craftsman detailing inside and out, traditional materials, lighting, and windows. Designed for a small family, couple, or single individual, this elegant home provides a tranquil, light-filled space for living simply, rooted in an historically-rich aesthetic. Features: Traditional Craftsman bungalow design Side dining patio w/ pergola Spacious, light-filled interior Windowed loft over front porch open to family room Open, contemporary floor plan with traditional bungalow detailing throughout.

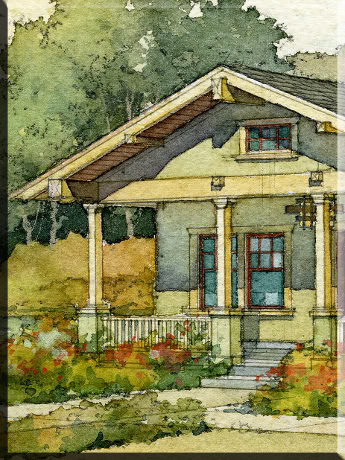

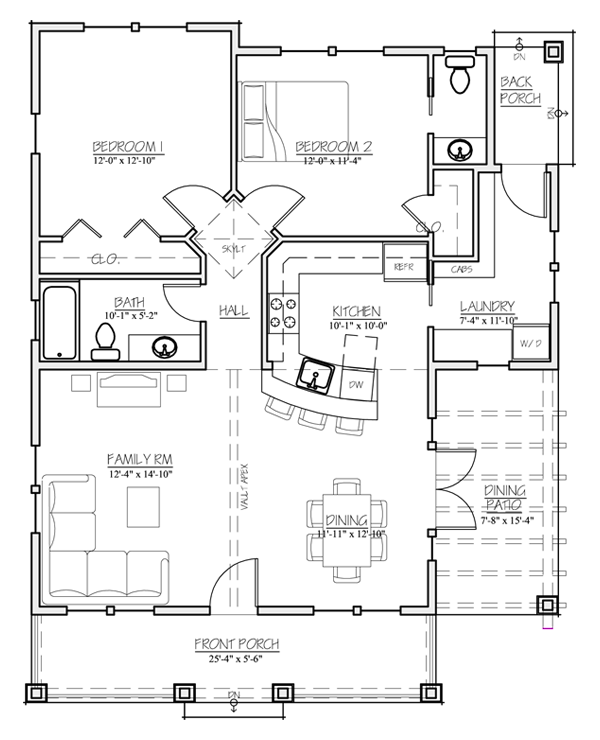

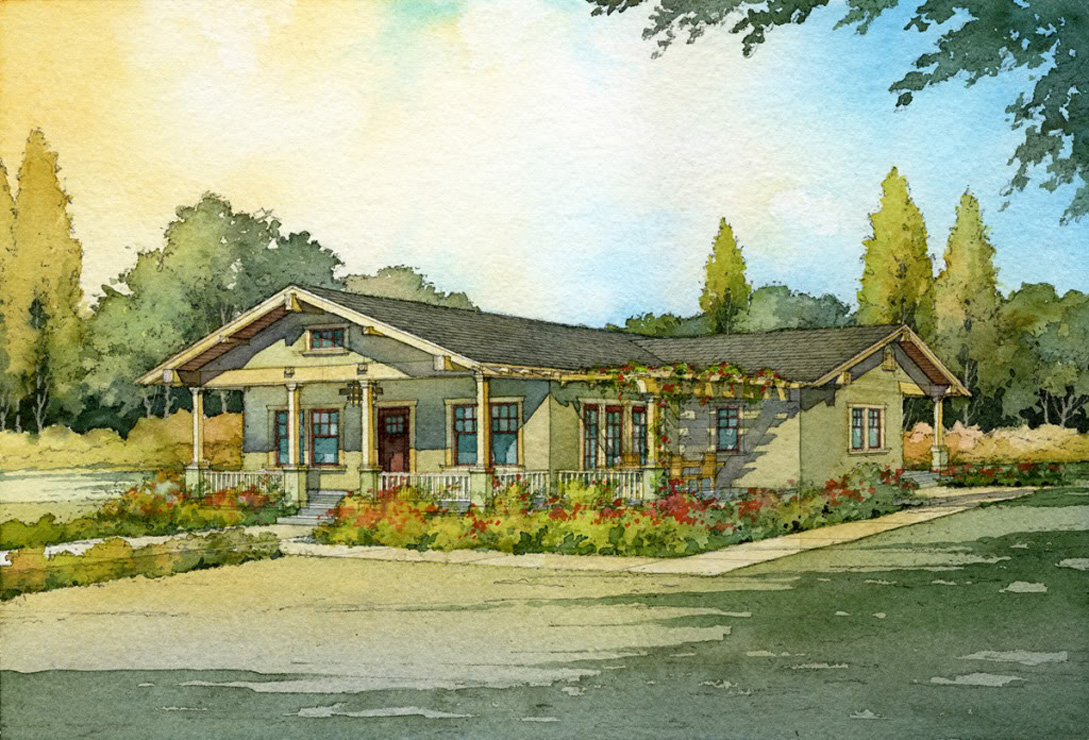

				Floor plan and Illustrations A102: A California Craftsman A classically composed front porch of 8" square columns and exposed beam entablature greets the viewer, and an open dining patio beckons one to refreshment and rest under a vine-draped pergola. Floor Plan You step up onto the front porch, large enough for a group of friends, but intimate enough for two. Hefty porch columns and exposed beams frame the space. Through the central front door you step into the vaulted great room of this bungalow. To your left is the family room. To your right is the dining area filled with sunlight from the double French doors and multi-paned sidelites. Adjacent to the dining room is the open kitchen, with a curved peninsula and raised counter for casual dining. Visible from this sitting area is the dining patio through the French doors. A pergola shelters this outdoor space, where a bougainvillea or wisteria may twist and arc over. Off the kitchen, a side door leads to the laundry and mudroom, which in turn leads to the back porch. Turning toward the front wall of the great room, a loft space, open to the great room, is situated over the front porch, with an attic window bringing in additional light. This space could be used as a sleeping loft, reading nook/ "away" space, for storage, or some combination of the three. Returning to the center of the great room, you proceed down the hall to the bedrooms. At the end of the hall a large skylight opens up the space, filling this interior hall with light, as well as the adjacent bedrooms. Printer Friendly Page

		Building Site Considerations This home should be situated such that the outdoor dining patio is oriented either toward the east or west, depending whether you'd be enjoying this space primarily in the mornings or for evening meals & entertainment. Specs Total living area: 1044 sq ft. Unconditioned area: Garage stalls: 0 Covered front porch: 132 sq. ft. Covered back porch: 29 sq. ft. Dining patio w/ pergola:117 sq. ft. Number of Rooms: Bedrooms: 2 Full Baths: 1 Half Baths: 1 Number of Stories: 1 Dimensions: Width: 33’-0” Depth: 42’-6” Height: 16’-3” Ceiling heights: Various: 9' flat ceilings and vaulted Roof: Pitch (main): 5:12 Framing: Stick Type: Wood shake Exterior Wall Construction: 2x6 Exterior Materials: Smooth-finish 3-coat stucco w/ smooth or sand float finish Redwood or cedar corbels, beams, & posts T&G 6" planking under eaves & porch ceilings Plan Content All plans are drawn at 1/4" scale and are annotated and dimensioned. These plans include: Floor plan for each level Four exterior elevations Two building sections Reflected ceiling plan Lighting / electrical plan Foundation plan Construction details Interior elevations
